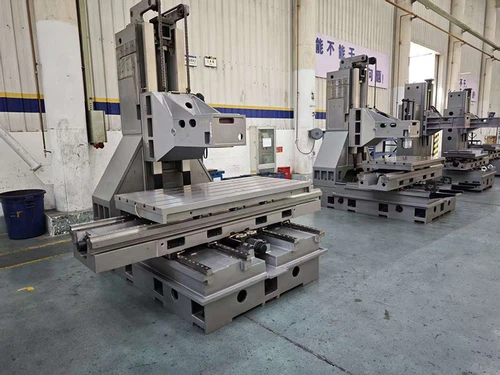

The XY linear way VMC frame, featuring a FEM-optimized XY linear guide way structure and Z box guide way, this machine achieves high precision and consistent long-term performance for mass parts production, with a more cost-effective price point than conventional design machines.

The mechanical parts' advantages stem from careful material selection and the precise machining of each core component.

High rigidity casting

The frames are made of GG30 castings, carefully processed through resin sand molding and a wooden pattern.

Top-level imported core parts

• Ball screws: Imported ball screws from internationally renowned brands such as PMI, Hiwin and THK are used.

• Bearings: Top-brand imported bearings, such as FAG, NSK and NTN, are used.

• Couplings: Imported couplings, such as R+W, are used.

• Booster cylinder

Precision guideway

The XY linear guide mounting surfaces are finely ground with imported high-precision grinding machines.

Both roller-type and ball-type linear guides are available for selection based on customers' actual application requirements.

The Z axis box guide way of the frames undergo a quenching and grinding process, are coated with Turcite-B, and are then precision scraped.

Imported high-precision spindle

Offer a selection of spindles with various rotational speeds, such as CTS spindles, belt-driven spindles and direct-drive spindles, to meet different machining requirements.

Comprehensive protection and lubrication

• Telescopic protection cover: The X, Y and Z axes are all equipped with stainless steel telescopic protection covers from brands such as Keyarrow.

• Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.

Z-axis counterbalance system: ensures vertical machining stability

The Z-axis of the machine is equipped with a counterbalance system which can effectively offset the weight of the Z-axis itself, as well as that of the spindle and tools.

Specifications	Unit	L970-II	L970-P	L970-G	TZL11	TZL12	TZL13	TZL15	TZL18	TZL20
Capacity
X travel	mm	1100	1200	1100	1200	1200	1300	1600	1800	2000
Y travel	mm	650	700	650	700	700	800	800	900	900
Z travel	mm	750	680	680	700	700	800	800	1000	1000
Spindle center to Column Slideway	mm	700	750	700	750	765	865	865	950	950
Spindle Nose to Worktable	mm	95-845	120-800	120-800	110-810	75-775	85-885	85-885	200-1200	200-1200
Worktable
Table Size	mm	650×1200	700x1300	650x1300	1300X700	1360X710	1500X810	1700X810	2000X900	2200X900
T-slots(NO.-Size×Distance)	mm	5-18×120	5-18×120	5-18×120	5-18×120	5-18×152.5	5-18×147.5	5-18×147.5	5-18×147.5	5-18×147.5
Max. Load	kg	800	1000	1200	1200	1000	1200	1500	2000	2000
Spindle
Spindle Taper / Dia.		BT40/Φ150	BT40/Φ150	BBT40/Φ160	BT40/Φ150	BT50/Φ155	BT50/Φ155	BT50/Φ155	BT50/Φ155	BT50/Φ155
Max. Speed	rpm	8000	8000	8000	8000	8000	8000	8000	8000	8000
Spindle motor power Recommended	Kw	7.5/11	7.5/11	7.5/11	7.5/11	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5
Feeding
X ball screw	mm/mm	40/12	40/12	40/12	40/12	40/12	50/10	55/12	50/10	50/10
Y ball screw	mm/mm	40/12	40/12	40/12	40/12	40/12	50/10	50/10	50/10	50/10
Z ball screw	mm/mm	40/12	40/12	40/12	40/12	40/12	50/10	50/10	50/10	50/10
X guide	mm	45	45	45	45	45	45	45	45	45
Y guide	mm	45	45	45	35	45	45	45	45	45
Z guide	/	box way	box way	box way	box way	box way	box way	box way	box way	box way
X/Y/Z Rapid speed	m/min	24/24/16	24/24/16	20/20/20	24/24/16	24/24/14	24/24/14	24/24/14	20/20/14	20/20/14
X drive		direct	direct	direct	direct	direct	direct	direct	direct	direct
Y drive		direct	direct	direct	direct	direct	direct	direct	direct	direct
Z drive		direct	direct	direct	direct	direct	direct	direct	direct	direct
X/Y/Z motor torque Recommended	NM	20/20/20	20/20/20	20/20/20	22/22/22	24/26/26	28/32/32	28/32/32	28/32/32	28/32/32
Other
Machine weight	kg	4500	4900	5800	6800	5800	7200	7400	8800	9000
Z cpunter balance		yes	yes	yes	yes	yes	yes	yes	yes	yes
