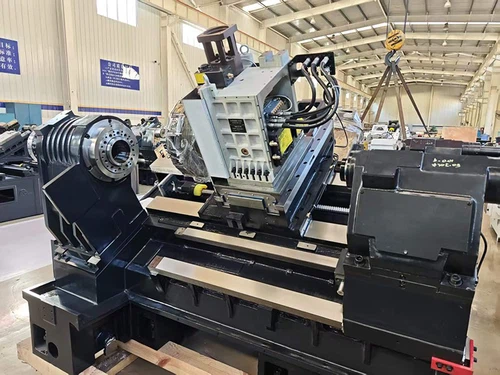

The BOX way lathe is highly praised in the precision turning and milling for its superior load-bearing capacity, stable operation and flexible configuration.
Mechanical Advantages
High-Quality Castings
The bed and key structural parts are made of high-quality HT300, which is produced by resin sand casting process. This advanced casting process effectively improves the density and structural uniformity of the cast iron, enhances the overall rigidity and vibration damping performance of the machine tool.
Slant Bed Design
The lathe adopts a scientific slant bed structure, usually inclined at 30°angle. The slant bed design provides better ergonomics, making it easier for operators to access the job and tooling, improving processing efficiency; more importantly, the slant bed structure can better distribute the load of the BOX way, further exerting its advantages in heavy-load processing.
BOX Way Design
The BOX way is with a larger contact area between the guide way surfaces, stronger load-bearing capacity and impact resistance, and can effectively absorb the vibration generated during heavy cutting, ensuring the stability of the machine tool during high-load, high-speed cutting.
High-Speed Rapid feed
The X and Z axes of the lathe are designed with high-speed movement performance, and the rapid speed can reach 14m/min. What distinguishes it from linear rail lathes is that the BOX way can maintain excellent stability and positioning accuracy even at high-speed rapid traverse.
Excellent Wear Resistance & Long-Term Stability
The BOX way adopts precision grinding and quenching process, with high surface hardness and smoothness, and is equipped with a professional lubrication system to ensure uniform lubrication of the guideway surface, effectively reducing friction and wear.
Flexible Mechanical Configurations
Flexible Turret Configurations
The lathe is equipped with a flexible turret system, which can be customized according to different processing needs. Optional configurations include servo turret, power turret and Y-axis power turret.
Optional Servo Tailstock
The lathe can be equipped with two types of servo tailstocks to meet different workpiece support needs: ball screw servo tailstock and Z-axis driven servo tailstock. The fully programmable servo tailstock can be controlled by part program
Dual Spindle Configuration
The dual spindle design enables the machine tool to complete the processing of both ends of the workpiece in one clamping, avoiding repeated clamping errors, greatly improving processing efficiency and processing accuracy.
Sheet Metal and Guide way Covers
The lathe can be equipped with sheet metal and XZ-axis guide way covers.
Optional Guide way Customization
The standard BOX way can be replaced with linear roller guide way according to actual processing needs
| RH-45H series | ||||||
| Model | RH-45H-1500 | RH-45H-2000 | RH-45H-3000 | RH-45H-4000 | RH-45H-5000 | RH-45H-6000 |
| Capacity | ||||||
| Max. Swing Dia. | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm |
| Max. Turning Dia | Φ1100 mm | Φ1100 mm | Φ1100 mm | Φ1100 mm | Φ1100 mm | Φ1100 mm |
| Max Turning Dia. over Turret | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm |
| Max Turning Length | 1600mm | 2100mm | 3100 mm | 4100mm | 5100 mm | 6100 mm |
| Spindle | ||||||
| Spindle type | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
| Optional Chuck | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) |
| Spindle Motor recommended | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW |
| Output torque (two speeds) | 1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
| Pulley reduction ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Max. spindle speed (two speeds) | 300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
| Spindle Bore Diameter | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm |
| Max. Bar Capacity | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205 mm |
| Feeding | ||||||
| X/Z Ball Screw | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 |
| X/Z Guide Way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way |
| X Travel | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm |
| Z Travel | 1900 mm | 2400 mm | 3400 mm | 4400 mm | 5400 mm | 6400 mm |
| Motor Torque of X/Z axes recommended | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm |
| Rapid speed of X/Z Axes | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min |
| X/Z Drive type | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive |
| Turret | ||||||
| Turret Type | 12-tool (200-12T-430) | 12-tool (200-12T-430) | 12-tool (200-12T-430) | 12-tool (200-12T-430) | 12-tool (200-12T-430) | 12-tool (335-12T-430) |
| Spec. of living molling tool | / | / | / | / | / | / |
| Speed of living molling tool | / | / | / | / | / | / |
| Center height of tool holder | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Center height of Turret Recommended | / | / | / | / | / | / |
| Power of Live milling tool | / | / | / | / | / | / |
| Spec. of living molling tool | / | / | / | / | / | / |
| Diameter of boring tool holder | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Section of Turning tool holder | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm |
| Tailstock | ||||||
| Linear guideway type | box way | box way | box way | box way | box way | box way |
| Max. Stroke of tailstock | 1700 mm | 2200 mm | 3200 mm | 4200 mm | 5200 mm | 6200 mm |
| Diameter of quill | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm |
| Stroke of quill | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Taper of tailstock quill | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# |
| Others | ||||||
| Weigtht of Machine frame | 20000kg | 22000kg | 24000kg | 28000kg | 32000kg | 36000kg |
| RH-45HM series | ||||||
| Model | RH-45HM-1500 | RH-45HM-2000 | RH-45HM-3000 | RH-45HM-4000 | RH-45HM-5000 | RH-45HM-6000 |
| Capacity | ||||||
| Max. Swing Dia. | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm |
| Max. Turning Dia | Φ930 mm | Φ930 mm | Φ930 mm | Φ930 mm | Φ930 mm | Φ930 mm |
| Max Turning Dia. over Turret | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm |
| Max Turning Length | 1600mm | 2100mm | 3100 mm | 4100mm | 5100 mm | 6100 mm |
| Spindle | ||||||
| Spindle type | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
| Optional Chuck | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) |
| Spindle Motor recommended | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW |
| Output torque (two speeds) | 1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
| Pulley reduction ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Max. spindle speed (two speeds) | 300RPM (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
| Spindle Bore Diameter | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm |
| Max. Bar Capacity | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205 mm |
| Feeding | ||||||
| X/Z Ball Screw | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 |
| X/Z Guide Way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way | Box way/Box way |
| X Travel | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm |
| Z Travel | 1900 mm | 2400 mm | 3400 mm | 4400 mm | 5400 mm | 6400 mm |
| Motor Torque of X/Z axes recommended | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm | 35/48 Nm |
| Rapid speed of X/Z Axes | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min | 12/12 m/min |
| X/Z Drive type | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive |
| Turret | ||||||
| Turret Type | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) |
| Center height of Turret Recommended | 150 mm/ | 150 mm/ | 150 mm/ | 150 mm/ | 150 mm/ | 150 mm/ |
| Center height of tool holder | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Spec. of living molling tool | BMT75 | BMT75 | BMT75 | BMT75 | BMT75 | BMT75 |
| Speed of living molling tool | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) |
| Power of Live milling tool recpmmended | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw |
| Spec. of living molling tool | ER32 | ER32 | ER32 | ER32 | ER32 | ER32 |
| Diameter of boring tool holder | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Section of Turning tool holder | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm |
| Tailstock | ||||||
| Linear guideway type | box way | box way | box way | box way | box way | box way |
| Max. Stroke of tailstock | 1700 mm | 2200 mm | 3200 mm | 4200 mm | 5200 mm | 6200 mm |
| Diameter of quill | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm |
| Stroke of quill | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Taper of tailstock quill | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# |
| Others | ||||||
| Weigtht of Machine frame | 20000kg | 22000kg | 24000kg | 28000kg | 32000kg | 36000kg |
| RH-45MY series | ||||||
| Model | RH-45MY-1500 | RH-45MY-2000 | RH-45MY-3000 | RH-45MY-4000 | RH-45MY-5000 | RH-45MY-6000 |
| Capacity | ||||||
| Max. Swing Dia. | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm | Φ1400 mm |
| Max. Turning Dia | Φ990 mm | Φ990 mm | Φ990 mm | Φ990 mm | Φ990 mm | Φ990 mm |
| Max Turning Dia. over Turret | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm | Φ780 mm |
| Max Turning Length | 1600mm | 2100mm | 3100 mm | 4100mm | 5100 mm | 6100 mm |
| Spindle | ||||||
| Spindle type | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
| Optional Chuck | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) | 24"(Φ610 mm) |
| Spindle Motor recommended | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW | 37 KW |
| Output torque (two speeds) | 1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
1540Nm (reduction ratio 1:5) / 3210Nm (reduction ratio 1:10.4) |
| Pulley reduction ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Max. spindle speed (two speeds) | 300RPM (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
300rpm (reduction ratio 1:5) / 144rpm (reduction ratio 1:10.4) |
| Spindle Bore Diameter | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm | Φ220 mm |
| Max. Bar Capacity | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205mm | Φ205 mm |
| Feeding | ||||||
| X/Z Ball Screw | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 | 8016/6316 |
| X/Z Guide Way | Box way/Box way/ Linear guideway | Box way/Box way/ Linear guideway | Box way/Box way/ Linear guideway | Box way/Box way/ Linear guideway | Box way/Box way/ Linear guideway | Box way/Box way/ Linear guideway |
| X Travel | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm | 560 mm |
| Z Travel | 1900 mm | 2400 mm | 3400 mm | 4400 mm | 5400 mm | 6400 mm |
| Y Travel | 250 (±125) mm | 250 (±125) mm | 250 (±125) mm | 250 (±125) mm | 250 (±125) mm | 250 (±125) mm |
| Motor Torque of X/Z/Y axes recommended | 35/48/11 Nm | 35/48/11 Nm | 35/48/11 Nm | 35/48/11 Nm | 35/48/11 Nm | 35/48/11Nm |
| Rapid speed of X/Z/Y Axes | 12/12/12 m/min | 12/12/12 m/min | 12/12/12 m/min | 12/12/12 m/min | 12/12/12 m/min | 12/12/12 m/min |
| X/Z Drive type | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive | Direct-drive |
| Turret | ||||||
| Turret Type | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) | 12-tool (BMT75) |
| Center height of Turret Recommended | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Center height of tool holder | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Spec. of living molling tool | BMT75 | BMT75 | BMT75 | BMT75 | BMT75 | BMT75 |
| Speed of living molling tool | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) | 6000 rpm (0°)/ 4000rpm(90°) |
| Power of Live milling tool recpmmended | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5/7.5 kw | 5.5 kw |
| Spec. of living molling tool | ER32 | ER32 | ER32 | ER32 | ER32 | ER32 |
| Diameter of boring tool holder | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Section of Turning tool holder | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm | 32*32 mm |
| Tailstock | ||||||
| Linear guideway type | box way | box way | box way | box way | box way | box way |
| Max. Stroke of tailstock | 1700 mm | 2200 mm | 3200 mm | 4200 mm | 5200 mm | 6200 mm |
| Diameter of quill | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm | Φ180 mm |
| Stroke of quill | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Taper of tailstock quill | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# | MT 6# |
| Others | ||||||
| Weigtht of Machine frame | 20000kg | 22000kg | 24000kg | 28000kg | 32000kg | 36000kg |
