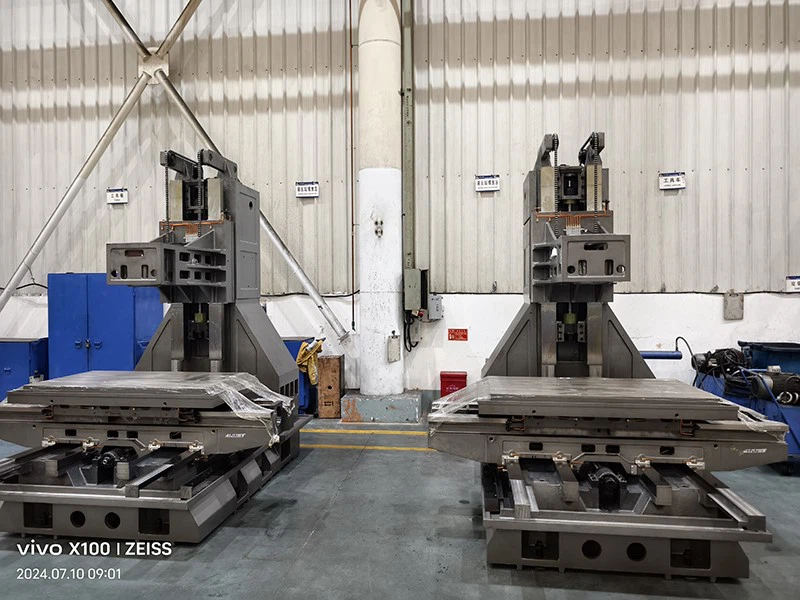

Thanks to its excellent mechanical structure design and high-quality component configuration, the box way vertical machining center frame offers unique advantages in heavy-duty cutting, high-precision machining and stable operation.

The box way vertical machining center frame is designed with FEM optimization, making it suitable for high-precision and long-term stable machining of mass-produced parts, while offering a more favorable price compared to traditionally designed models.

It is widely used in mold manufacturing and parts processing where strict requirements apply with regard to machining accuracy and rigidity. The mechanical parts' advantages stem from careful material selection and the precise machining of each core component.

High rigidity casting

The frames are made of GG30 castings, carefully processed through resin sand molding and a wooden pattern.

Top-level imported core parts

• Ball screws: Imported ball screws from internationally renowned brands such as PMI and THK are used.

• Bearings: Top-brand imported bearings, such as FAG, NSK and NTN, are used.

• Couplings: Imported couplings, such as R+W, are used.

• Booster cylinder

Precision box guideway: improving motion accuracy and wear resistance

The X, Y and Z three-axis box guide ways of the frames undergo a quenching and grinding process, are coated with Turcite-B, and are then precision scraped.

Imported high-precision spindle

Offer a selection of spindles with various rotational speeds, such as CTS spindles, belt-driven spindles and direct-drive spindles, to meet different machining requirements.

Comprehensive protection and lubrication

• Telescopic protection cover: The X, Y and Z axes are all equipped with stainless steel telescopic protection covers from brands such as Keyarrow.

• Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.

Z-axis counterbalance system: ensures vertical machining stability.

The Z-axis of the machine is equipped with a counterbalance system which can effectively offset the weight of the Z-axis itself, as well as that of the spindle and tools.

Specifications	Unit	850B	850C	970	TZ11	TZ12	TZ15
Capacity
X travel	mm	800	800	1100	1200	1200	1600
Y travel	mm	500	500	600	700	700	800
Z travel	mm	550	700	700	700	700	800
Spindle center to Column Slideway	mm	550	575	654	750	765	865
Spindle Nose to Worktable	mm	105-655	110-810	110-810	110-810	110-810	85-885
Worktable
Table Size	mm	500×1050	530x1000	600x1200	1300X700	1360X710	1700X710
T-slots(NO.-Size×Distance)	mm	5-18×90	5-18×100	5-18×120	5-18×120	5-18×152.5	5-18×147.5
Max. Load	kg	600	600	800	1200	1000	1500
Spindle
Spindle Taper / Dia.		BT40/Φ150	BT40/Φ150	BT40/Φ150	BT40/Φ150	BT50/Φ155	BT50/Φ155
Max. Speed	rpm	8000	8000	8000	8000	8000	8000
Spindle motor power Recommended	Kw	7.5/11	7.5/11	7.5/11	7.5/11	15/18.5	15/18.5
Feeding
X ball screw	mm/mm	40/10	40/10	40/10	40/12	40/12	55/12
Y ball screw	mm/mm	40/10	40/10	40/10	40/12	40/12	50/10
Z ball screw	mm/mm	40/10	40/10	40/10	40/12	40/12	50/10
X guide	/	box way	box way	box way	box way	box way	box way
Y guide	/	box way	box way	box way	box way	box way	box way
Z guide	/	box way	box way	box way	box way	box way	box way
X/Y/Z Rapid speed	m/min	14/14/16	14/14/16	16/14/16	16/16/16	16/16/14	16/16/14
X drive		direct	direct	direct	direct	direct	direct
Y drive		direct	direct	direct	direct	direct	direct
Z drive		direct	direct	direct	direct	direct	direct
X/Y/Z motor torque Recommended	NM	10/12/12	14/14/16	20/20/20	22/22/22	24/26/26	28/32/32
Other
Machine weight	kg	3300	4500	4500	6800	5800	7400
