Economical Horizontal Milling Frame

Send Inquiry
Economical Horizontal Milling Frame
Details
It delivers core horizontal machining capabilities at a fraction of the cost of a full HMC, making it a cost-effective solution for workshops seeking to expand their horizontal processing capabilities.
Category
Horizontal Milling Machine Machine
Share to
Description

Economical horizontal milling frame is the Entry-Level Horizontal Machining Center

It delivers core horizontal machining capabilities at a fraction of the cost of a full HMC, making it a cost-effective solution for workshops seeking to expand their horizontal processing capabilities.

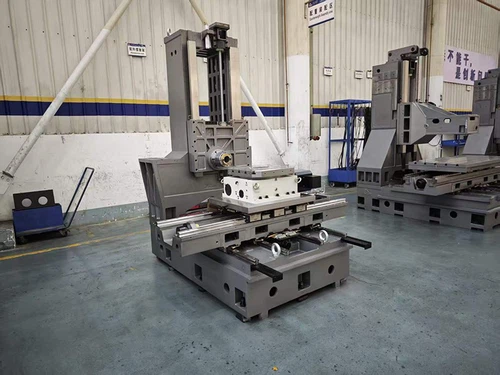

LW970-P

Spindle & Motion Architecture



Horizontal Spindle Orientation: Like a traditional HMC, the spindle is mounted horizontally, parallel to the worktable, enabling efficient horizontal milling, boring, and multi-side machining.

Simplified Motion System



Unlike HMCs, the Economical horizontal milling frames adopt a fixed-column, moving-table, retaining the linear X/Y/Z axis motion of a VMC while integrating a horizontal spindle.

High rigidity casting



The machine body is constructed from high-grade cast iron (HT300) with FEM-optimized ribbing, ensuring high static and dynamic rigidity for heavy-duty cutting, similar to HMCs, but without the complex enclosed structure of premium models.

Optional Rotary Table for 4-Sided Machining



By integrating a 4th-axis rotary table on the worktable, the machine can achieve fully automated 4-sided machining of workpieces in a single setup, eliminating the need for manual re-fixturing and significantly improving processing efficiency.

Lubrication



Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.

Space Efficiency



Compared to large, enclosed HMCs, these bed-type horizontal mills have a smaller footprint, making them suitable for workshops with limited floor space.

Operator-Friendly Design



Retains the intuitive operation of VMCs, with easy workpiece access and visibility, reducing training time for operators familiar with vertical machines.



Model LW855 LW970-II LW970A-II LW970-P LW970A-P LW13 LWB13 LW15 LWB15 LW1075 LW1290 LW1814
Table size (mm) 550×1000 650×1200 650×1200 700×1300 700×1300 810×1500 810×1500 810×1700 810×1700 600×1300 700×1360 900×1260
Table left/right X (mm) 800 1100 1100 1200 1200 1300 1300 1500 1500 1000 1200 1800
Spindle up/down Y (mm) 600 750 750 750 750 800 800 800 800 750 900 1400
Table back/forth Z (mm) 550 650 650 700 700 1000 1000 1000 1000 600 700 900
X guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Ball linear guide Ball linear guide Ball linear guide
Y guide Roller linear guide Box way Roller linear guide Box way Roller linear guide Box way Roller linear guide Box way Roller linear guide Box way Box way Box way
Z guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Roller linear guide Ball linear guide Ball linear guide Ball linear guide
Belt Spindle BT40-150-8000 BT40-150-8000 BT40-150-8000 BT40-150-8000 BT40-150-8000 BT50-155-8000 BT50-155-8000 BT50-155-8000 BT50-155-8000 BT50-190-6000 BT50-190-6000 BT50-190-6000
Remark No Y counter balance No Y counter balance No Y counter balance No Y counter balance No Y counter balance No Y counter balance No Y counter balance No Y counter balance No Y counter balance Y counter balance Y counter balance Y counter balance
