XYZ Linear Way Vertical Machining Center Frame
Details
The XYZ linear way vertical machining center frame, featuring an FEM‑optimized XYZ linear guide way structure, this machine achieves high precision and consistent long-term performance for mass parts production, with a more cost-effective price point than conventional design machines..
Category
XYZ Linear Way Vertical Machining Center Machine
Share to
Description

The XYZ linear way vertical machining center frame, featuring an FEM‑optimized XYZ linear guide way structure, this machine achieves high precision and consistent long-term performance for mass parts production, with a more cost-effective price point than conventional design machines..



The mechanical parts' advantages stem from careful material selection and the precise machining of each core component.

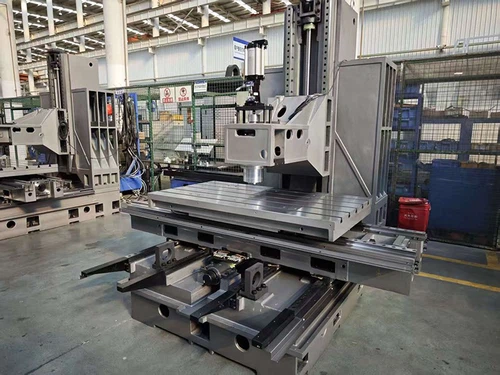

TZLB13



High rigidity casting



The frames are made of GG30 castings, carefully processed through resin sand molding and a wooden pattern.

Top-level imported core parts



• Ball screws: Imported ball screws from internationally renowned brands such as PMI, Hiwin and THK are used.

• Bearings: Top-brand imported bearings, such as FAG, NSK and NTN, are used.

• Couplings: Imported couplings, such as R+W, are used.

• Booster cylinder

Imported high-precision spindle



Offer a selection of spindles with various rotational speeds, such as CTS spindles, belt-driven spindles and direct-drive spindles, to meet different machining requirements.

Precision guideway



The linear guide mounting surfaces are finely ground with imported high-precision grinding machines.

Both roller-type and ball-type linear guides are available for selection based on customers' actual application requirements.

Comprehensive protection and lubrication



• Telescopic protection cover: The X, Y and Z axes are all equipped with stainless steel telescopic protection covers from brands such as Keyarrow.

• Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.

Z-axis counterbalance system



There are no counter balance system in the standard configuration, it can be added if the application requires it.



Specifications Unit V6 L850A L970A-II L970A-P L970A-G TZLB11 TZLB12 TZLB13 TZLB15 TZLB18 TZLB20
Capacity
X travel mm 600 800 1100 1200 1100 1200 1200 1300 1600 1800 2000
Y travel mm 400 550 650 700 650 700 700 800 800 900 900
Z travel mm 420 550 750 680 680 700 700 800 800 1000 1000
Spindle center to Column Slideway mm 456 575 722 772 722 750 785 875 875 950 950
Spindle Nose to Worktable mm 170-590 120-670 95-845 120-800 120-800 110-810 75-775 85-885 85-885 200-1200 200-1200
Worktable
Table Size mm 420x700 500x1000 650x1200 700x1300 650x1300 1300X700 1360X710 1500X810 1700X810 2000X900 2200X900
T-slots(NO.-Size×Distance) mm 3-18×125 5-18x90 5-18x90 5-18x120 5-18x120 5-18×120 5-18×152.5 5-18×147.5 5-18×147.5 5-18×147.5 5-18×147.5
Max. Load kg 300 500 500 1000 1200 1200 1000 1200 1500 2000 2000
Spindle
Spindle Taper / Dia.   BT40/Φ120 BT40/Φ150 BT40/Φ150 BT40/Φ150 BBT40/Φ160 BT40/Φ150 BT50/Φ155 BT50/Φ155 BT50/Φ155 BT50/Φ155 BT50/Φ155
Max. Speed rpm 12000 8000 8000 8000 8000 8000 8000 8000 8000 8000 8000
Spindle motor power Recommended Kw 5.5/7.5 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11 15/18.5 15/18.5 15/18.5 15/18.5 15/18.5
Feeding
X ball screw mm/mm 32/16 40/16 40/12 40/12 40/12 40/12 40/12 50/10 55/12 50/10 50/10
Y ball screw mm/mm 32/16 40/16 40/12 40/12 40/12 40/12 40/12 50/10 50/10 50/10 50/10
Z ball screw mm/mm 32/16 40/16 40/12 40/12 40/12 40/12 40/12 50/10 50/10 50/10 50/10
X guide mm 30 35 45 45 45 45 45 45 45 45 45
Y guide mm 30 45 45 45 45 35 45 45 45 45 45
Z guide mm 35 45 45 45 45 45 45 45 45 45 45
X/Y/Z Rapid speed m/min 48/48/48 48/48/48 24/24/24 24/24/24 20/20/20 24/24/16 24/24/16 24/24/16 24/24/16 20/20/16 20/20/16
X drive   direct direct direct direct direct direct direct direct direct direct direct
Y drive   direct direct direct direct direct direct direct direct direct direct direct
Z drive   direct direct direct direct direct direct direct direct direct direct direct
X/Y/Z motor torque Recommended NM 12/12/22 16/16/22 20/20/20 20/20/20 20/20/20 22/22/22 24/26/30 28/32/36 28/32/36 28/32/36 28/32/36
Other
Machine weight kg 2500 3500 4200 4500 5200 6300 5200 6400 6600 8000 8200
Z cpunter balance   No No No No No No No No No Yes Yes
