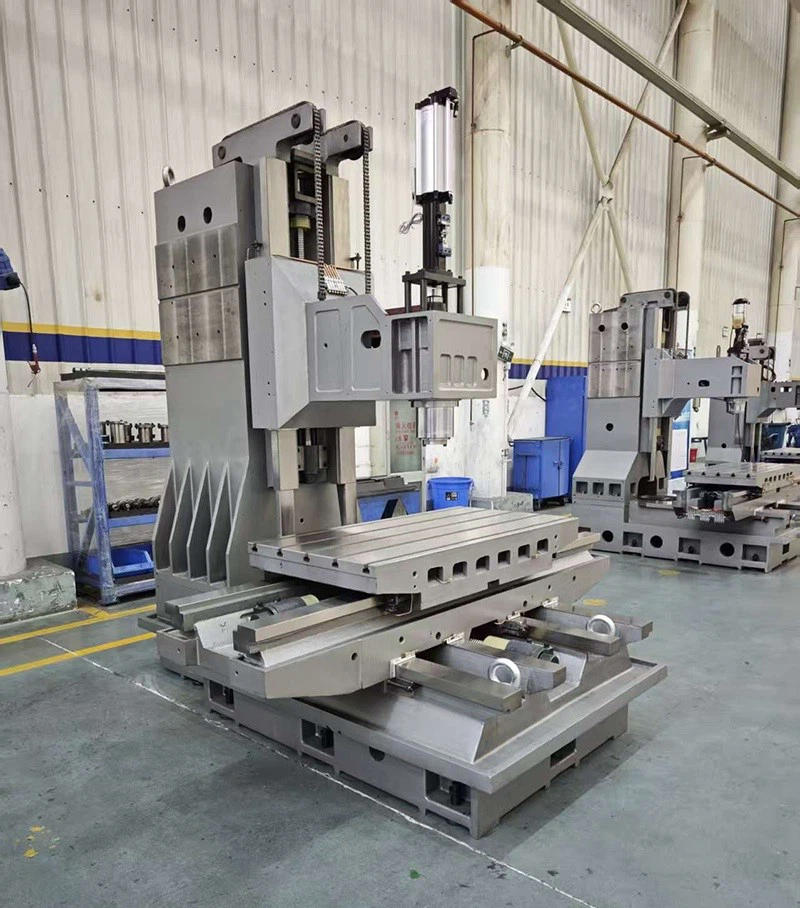

Thanks to its excellent mechanical structure design and high-quality component configuration, Box way VMC frames offer unique advantages in heavy-duty cutting, high-precision machining and stable operation.

Box way VMC frames featuring a proven traditional design, this machine delivers high precision and stable performance for heavy-duty cutting applications.

It is widely used in mold manufacturing and parts processing.

It is widely used in mold manufacturing and parts processing where strict requirements apply with regard to machining accuracy and rigidity. The mechanical parts' advantages stem from careful material selection and the precise machining of each core component.

High rigidity casting

The frames are made of GG30 castings, carefully processed through resin sand molding and a wooden pattern.

Top-level imported core parts

• Ball screws: Imported ball screws from internationally renowned brands such as PMI and THK are used.

• Bearings: Top-brand imported bearings, such as FAG, NSK and NTN, are used.

• Couplings: Imported couplings, such as R+W, are used.

• Booster cylinder

Precision box guideway: improving motion accuracy and wear resistance

The X, Y and Z three-axis box guide ways of the frames undergo a quenching and grinding process, are coated with Turcite-B, and are then precision scraped.

Imported high-precision spindle

Offer a selection of spindles with various rotational speeds, such as CTS spindles, belt-driven spindles and direct-drive spindles, to meet different machining requirements.

Comprehensive protection and lubrication

• Telescopic protection cover: The X, Y and Z axes are all equipped with stainless steel telescopic protection covers from brands such as Keyarrow.

• Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.

Z-axis counterbalance system: ensures vertical machining stability

The Z-axis of the machine is equipped with a counterbalance system which can effectively offset the weight of the Z-axis itself, as well as that of the spindle and tools.

Specifications	Unit	1060	1060B	1270	1380	1580	1890B
Capacity
X travel	mm	1000	1000	1200	1300	1500	1800
Y travel	mm	600	600	700	800	800	900
Z travel	mm	600	600	600	700	700	800
Spindle center to Column Slideway	mm	600	655	785	850	810	950
Spindle Nose to Worktable	mm	180-780	180-780	150-750	100-800	170-870	160-960
Worktable
Table Size	mm	600×1300	600×1300	700x1360	1400X800	1700X800	2000X900
T-slots(NO.-Size×Distance)	mm	5-18×120	5-18×120	5-18×152.5	5-18×152.5	5-22×135	5-22×165
Max. Load	kg	800	800	1000	1200	1500	1600
Spindle
Spindle Taper / Dia.		BT40/Φ150	BT40/Φ150	BT50/Φ155	BT50/Φ155	BT50/Φ155	BT50/Φ155
Max. Speed	rpm	8000	8000	8000	8000	8000	8000
Spindle motor power Recommended	Kw	7.5/11	7.5/11	15/18.5	15/18.5	15/18.5	18.5/22
Feeding
X ball screw	mm/mm	40/10	40/10	50/10	50/10	55/12	55/12
Y ball screw	mm/mm	40/10	40/10	50/10	50/10	55/12	55/12
Z ball screw	mm/mm	40/10	40/10	50/12	50/10	50/10	55/12
X guide	/	box way	box way	box way	box way	box way	box way
Y guide	/	box way	box way	box way	box way	box way	box way
Z guide	/	box way	box way	box way	box way	box way	box way
X/Y/Z Rapid speed	m/min	14/14/16	14/14/16	10/10/12	16/16/14	10/10/12	14/14/14
X drive		direct	direct	direct	direct	direct	direct
Y drive		direct	direct	direct	direct	direct	direct
Z drive		direct	direct	direct	direct	direct	direct
X/Y/Z motor torque Recommended	NM	14/16/16	14/16/16	16/20/20	24/26/26	24/26/26	26/30/30
Other
Machine weight	kg	5500	5800	7500	7500	10000	11000
