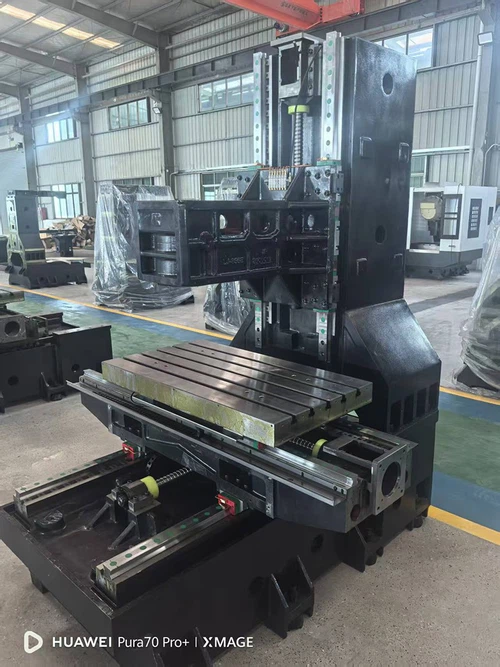

The XYZ linear way VMC frame, featuring a proven traditional design, this machine delivers high precision and stable performance for heavy-duty cutting applications.
It is widely used in mold manufacturing and parts processing.
The mechanical parts' advantages stem from careful material selection and the precise machining of each core component.
High rigidity casting
The frames are made of GG30 castings, carefully processed through resin sand molding and a wooden pattern.
Top-level imported core parts
• Ball screws: Imported ball screws from internationally renowned brands such as PMI, Hiwin and THK are used.
• Bearings: Top-brand imported bearings, such as FAG, NSK and NTN, are used.
• Couplings: Imported couplings, such as R+W, are used.
• Booster cylinder
Imported high-precision spindle
Offer a selection of spindles with various rotational speeds, such as CTS spindles, belt-driven spindles and direct-drive spindles, to meet different machining requirements.
Precision guideway
The linear guide mounting surfaces are finely ground with imported high-precision grinding machines.
Both roller-type and ball-type linear guides are available for selection based on customers' actual application requirements.
Comprehensive protection and lubrication
• Telescopic protection cover: The X, Y and Z axes are all equipped with stainless steel telescopic protection covers from brands such as Keyarrow.
• Central automatic lubrication system: The machine is equipped with a central automatic lubrication system.
Z-axis counterbalance system
There are no counter balance system in the standard configuration, it can be added if the application requires it.
| Specifications | Unit | LV855-II | TZ855B | L966B | L1160B | V1165-II |
| Capacity | ||||||
| X travel | mm | 800 | 800 | 900 | 1100 | 1100 |
| Y travel | mm | 500 | 550 | 600 | 600 | 650 |
| Z travel | mm | 600 | 550 | 600 | 600 | 650 |
| Spindle center to Column Slideway | mm | 585 | 590 | 657 | 664 | 670 |
| Spindle Nose to Worktable | mm | 110-710 | 120-670 | 70-670 | 130-730 | 150-800 |
| Worktable | ||||||
| Table Size | mm | 500×1000 | 550x1000 | 550x1000 | 1300X600 | 1200X600 |
| T-slots(NO.-Size×Distance) | mm | 5-18×90 | 5-18×90 | 5-18×105 | 5-18×90 | 5-18×100 |
| Max. Load | kg | 450 | 500 | 600 | 800 | 800 |
| Spindle | ||||||
| Spindle Taper / Dia. | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | |
| Max. Speed | rpm | 8000 | 8000 | 8000 | 8000 | 8000 |
| Spindle motor power Recommended | Kw | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 |
| Feeding | ||||||
| X ball screw | mm/mm | 40/12 | 40/16 | 40/12 | 40/12 | 40/12 |
| Y ball screw | mm/mm | 40/12 | 40/16 | 40/12 | 40/12 | 40/12 |
| Z ball screw | mm/mm | 40/12 | 40/16 | 40/12 | 40/12 | 40/12 |
| X linear guide | mm | 35 | 35 | 35 | 45 | 45 |
| Y linear guide | mm | 45 | 45 | 45 | 45 | 45 |
| Z guide | mm | 45 | 45 | 45 | 45 | 45 |
| X/Y/Z Rapid speed | m/min | 24/24/24 | 36/36/36 | 30/30/30 | 24/24/24 | 36/36/36 |
| X drive | direct | direct | direct | direct | direct | |
| Y drive | direct | direct | direct | direct | direct | |
| Z drive | direct | direct | direct | direct | direct | |
| X/Y/Z motor torque Recommended | NM | 10/12/12 | 12/12/30 | 10/12/12 | 20/20/27 | 12/16/22 |
| Other | ||||||
| Machine weight | kg | 3500 | 3400 | 5200 | 5200 | 4600 |
| Z balance | yes | no | no | no | no | |
